Upper bar

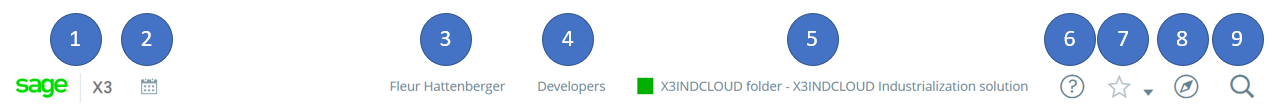

When a page is displayed, most of it is used by the application content. The shell providing access to function pages is a single top bar similar to the one beneath:

Functions available from the upper bar

This bar provides access to different functions:

1 - Gives you access to the landing pages.

2 - Indicates the currently set connection parameters depending of your current context.

3 - Indicates the logged in user name. Clicking this item opens a panel where you can:

• Select the locale and language
• Select the theme to be used
• Log out
• Access to other functions depending on your context

4 - Indicates the currently used user role. Clicking this item opens a panel where you can change your role.

5 - Indicates the currently used endpoint. Clicking this item opens a panel where you can change your role. In addition, this item indicates the endpoint type.

6 - Opens the Help pages.

7 - Opens the list of bookmarks when clicking the down arrow. Clicking the star icon will add or remove the current page to the bookmarks.

8 - Opens the sitemap.

9 - Opens the search functions.

Endpoint types

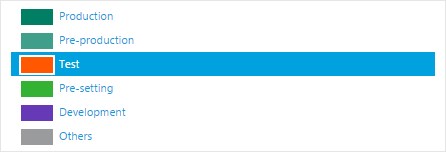

In the endpoints administration page, you can select an endpoint type from a predefined list:

The color representation of the chosen endpoint is available in the global header so that you always see in a glance in which type of endpoint you are.
