Dashboards
| Administration Page | Application/Contract | Syracuse/Collaboration | Class | dashboardDefs | Representation | dashboardDef |
|---|
Dashboards are entities representing a set of portlets including references to menu items.
These entities have been replaced by home pages and navigation pages. There is no more direct link to this function, but if you need to have access to it, the best is to copy the following piece of URL and to paste it in your browser after the server:servicepart:
/syracuse-main/html/main.html?url=%2Fsdata%2Fsyracuse%2Fcollaboration%2Fsyracuse%2FdashboardDefs%3Frepresentation%3DdashboardDef.%2524query
The only reason why they are still available is because they are used to define mobile application.
A dashboard can include several variants linked to users, endpoints, and roles, and depending on the settings associated with the user connection, the most relevant variant will be used.
| Information section | Variants grid | Appendix |
Creating or updating a dashboard requires entering information on the following sections:
Global information including the following:
The default title when the dashboard is displayed if the variant used has no specific title. It is dependent on the locale the user selected at connection time, or if the user changed it in the User preference panel.
When a dashboard is first created, the title is considered the default title for all the locales. When a user connected with another locale modifies the dashboard, the user will be able to create a title for the current locale.
This user-friendly description of the dashboard is also displayed under the Title, if it exists, when the dashboard is displayed and if the variant used has no specific description. This description can also be set up for each locale code.
This name corresponds to the code used in the connection URL. By default, a "home" dashboard name instance must exist.
If this check box is set, the dashboard can be selected as an application on a mobile phone connected to the Syracuse platform. If the dashboard is selected, it will appear as a dedicated application on the mobile phone entry screen, and give access to a page where every portlet associated to the dashboard will become a menu entry to access to the corresponding operation.
This grid contains several variants with rules that define in which conditions the variant can be used. During connection time, or when the user changes its connection characteristics through the User preference panel, the most relevant variant is selected and displayed. The rules used to define the most relevant variant are defined later. For every variant created in this grid, the first information that must be entered as follows:
This title is displayed when the corresponding dashboard variant is selected. If not entered, the dashboard title is used. This title may depend on the locale the user has selected.
This description is displayed when the corresponding dashboard variant is selected. If not filled, the dashboard description is used. This description may depend from the locale the user has selected.
When this check box is selected, the portal may contain vignettes (portlets) linked to any application type. If this is not the case, an application must be selected. Only vignettes (portlets) able to work with the corresponding application can be used in the dashboard.
This is the application the portal variant is limited to if the previous check box is cleared.
Clicking the triangle on the first column of the grid for a variant will open a card view with four tabs called Vignettes, Applies To Roles, Applies To Users, and Applies To Endpoints. The information that must be entered in these tabs as follow:
In this tab, select the vignettes (or portlets) that will appear in the dashboard. Clicking the plus "+" sign will open a selection box where multiple portlets can be selected at once.
For every portlet selected, the following information is entered:
This check box can be selected for a unique portlet in a variant, and only if this portlet is a menu vignette. When this is the case, the menu appears as a right bar in the portal. As the dashboards are only used for mobile application, this check box is now obsolete.
If this check box is selected, the ways the vignette is displayed for the user are the following:
If the previous check box is cleared, you must select the endpoint on the vignette definition. The vignette will then be displayed only if the selected endpoint is the same, or if no endpoint has been selected.
In this tab, select roles for which the variant will be used based on the algorithm defined here. The selection window allows multiple selections.
In this tab, select users for which the variant will be used based on the algorithm defined here. The selection window allows multiple selections.
In this tab, select endpoints for which the variant will be used based on the algorithm defined here. The selection window allows multiple selections.
The applied algorithm for selecting the most relevant variant used is based on a ranking. When a user (for example, U1) is connected, he has a role (for example, R1), and can have an endpoint (for example, E1, but it can also be blank).

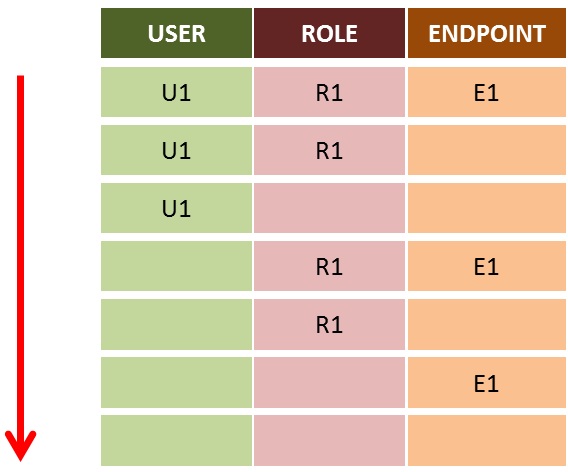

To find the most relevant variant, the ranking algorithm considers the following combination of conditions between the user, role, and endpoints the variant has been associated with in the order defined by the red arrow:
This means that :
